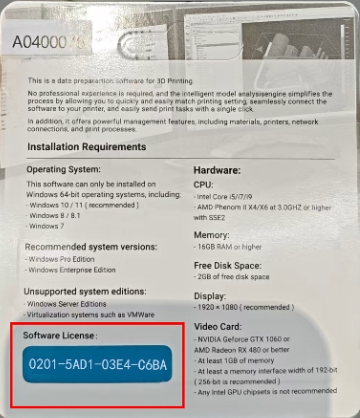

1.Activation Code Source

The activation code is on the outside of the USB drive   packaging

2. ShapeWare 2.0 download link：

Windows：Click here

macOS: Click here



3.Minimum Requirements

**Windows**

CPU:

    Inter Core i5-11、AMD 5-5500 (recommended)

    Inter Core i5-8、AMD 5-1500X

Memory:

    DDR4 3200MHz 16GB RAM（recommended）

    DDR3 1600MHz 16GB RAM

Free Disk Space:

    20GB and above

Display:

    1920x1080（recommended）

Video Card:

    NVIDIA GTX 1660 Ti、AMD RX5600（recommended）

    NVIDIA GTX 1060 3Gb、AMD RX560 XT



 macOS system:

CPU:

        - Apple Silicon devices (M1, M2, M3 series chips)

Operating System:

No specific OS version requirements,

keeping the system up to date is recommended for optimal compatibility.

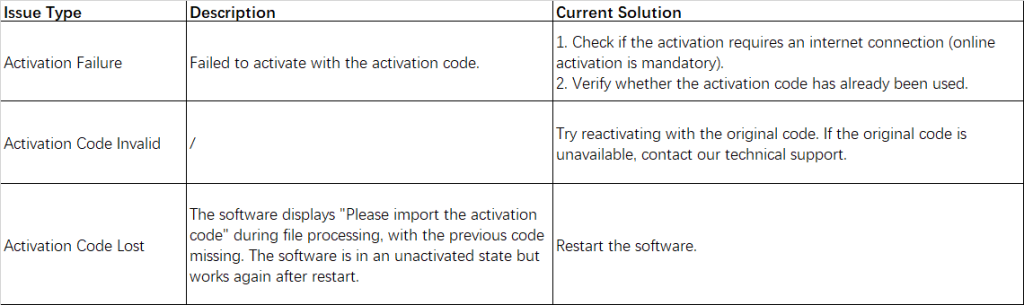

4.Activation Code Expiration and Troubleshooting Guide



5.Common Software Issues and Solutions

Q: After deleting a printer from the "Manage Platform - Device Manager" , the deleted printer cannot be found even after refreshing the list.



A: In ShapeWare 2.0, clicking "Refresh" during the initial software use will display all available printers within the current network. However, once a printer is manually deleted, it will no longer reappear in the list during subsequent refreshes.

To re-add a printer, please click "Add Device" and manually enter the printer's IP address.



How to find the printer IP address (Ensure the printer and software are on the same wireless network):



Edge mini: Click "the Network Connection icon (on the right side of the interface) - WLAN CONFIG" to view the printer's IP address.



Edge E2 & Max: Click "SETTINGS - NETWORK - WIRELESS CONFIG" to view the printer's IP address.

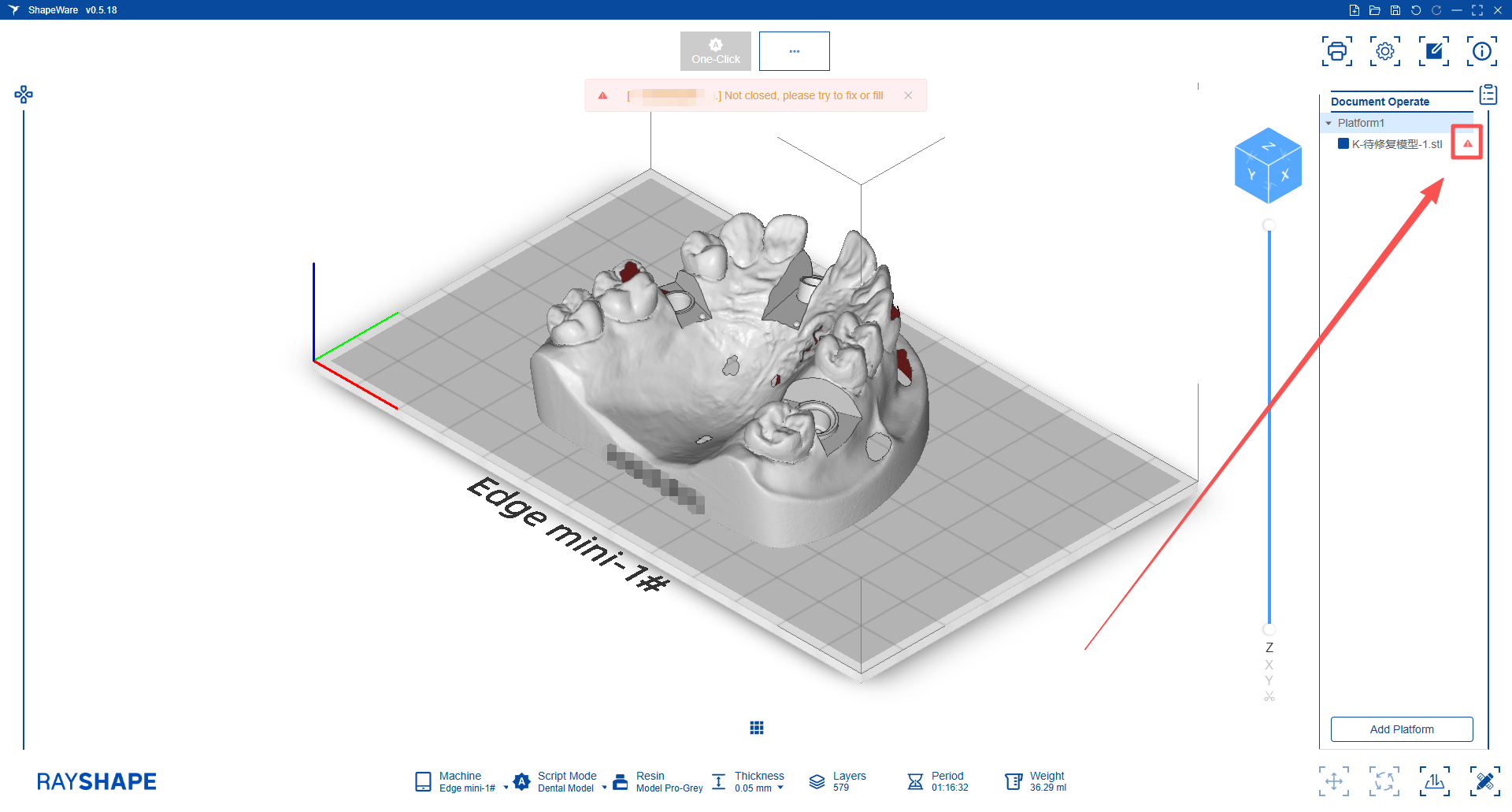

Q: Why does the system prompt "Not closed, please try to fix or fill"?



A: This prompt indicates that the model has open boundaries (such as holes or open meshes). You can repair it using the following methods:

  1. Ensure that your ShapeWare 2.0 is up to date. You can verify this via "System Information - Check Version".

  2. Click the "Triangle Warning Icon" on the interface, and the software will automatically execute "Repair" and "Reconstruct".

  3. Alternatively, manually repair it via "Edit - Fix Holes & Rebuild".

6.Download Code for Mac

sudo xattr -rd com.apple.quarantine /Applications/ShapeWare.app
